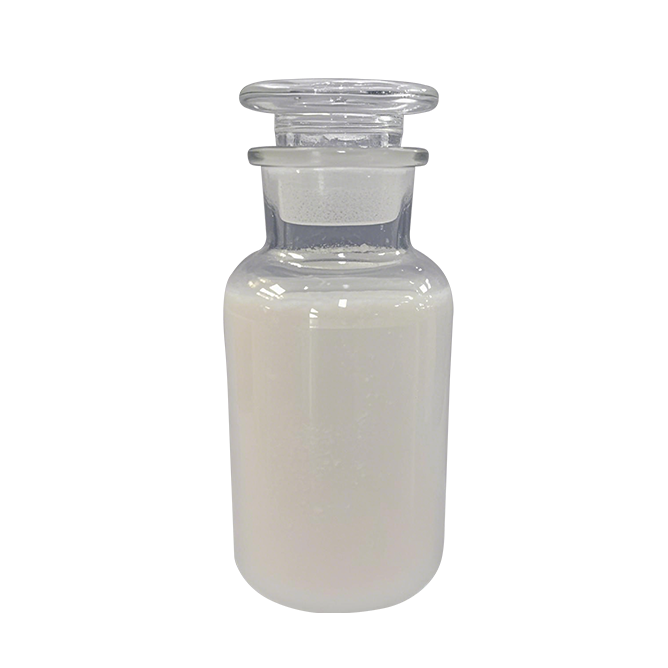

HD6117 is a binder with an average particle size of approximately 1.0 μ m, used for membrane electrode bonding and can replace PVdF. Effective bonding can be achieved by applying pressure at room temperature, with superior bonding strength at 40-60 ℃. Helps to suppress cell deformation and improve overall battery performance.

| Model | Appearance | Solid Content (%) | D50 (μm) | Swelling (%) | Tg (℃) | Characteristics |
|---|---|---|---|---|---|---|
| HD6117 | White Lotion | 15±1 | 0.9±0.2 | 70±30 | -45±10 | Diaphragm has weak self adhesion |
For details, please contact our staff.
HD2126 is a ceramic binder that allows for proper vitrification by adjusting the molecular structure
HD6121 is a highly heat-resistant ceramic binder with the introduction of a high heat-resistant unit into its molecular structure
HD2121 is a mixed-coated separator binder with a particle size of approximately 5 μm that transitions from particle size to glass transformation
HD6190 is a separator binder with a particle size of about 0.9 μm. The special structural design makes it
